1️⃣ Why Feed Rate Accuracy Matters
In powder feeding processes, the ability to deliver material at a consistent and precise feed rate directly affects product quality.
Even a slight deviation in the dosing amount can alter reaction ratios, blending uniformity, or coating thickness — all of which can cause variation in the final product.
That’s why feed rate accuracy is one of the most critical factors in industries such as chemicals, food, batteries, and pharmaceuticals.
However, achieving stable and accurate feeding is challenging, since powder behavior varies depending on particle size, bulk density, and moisture content.
A feeder that performs well with one type of powder may show large fluctuations with another.
2️⃣ Basic Principle of Feed Rate Control

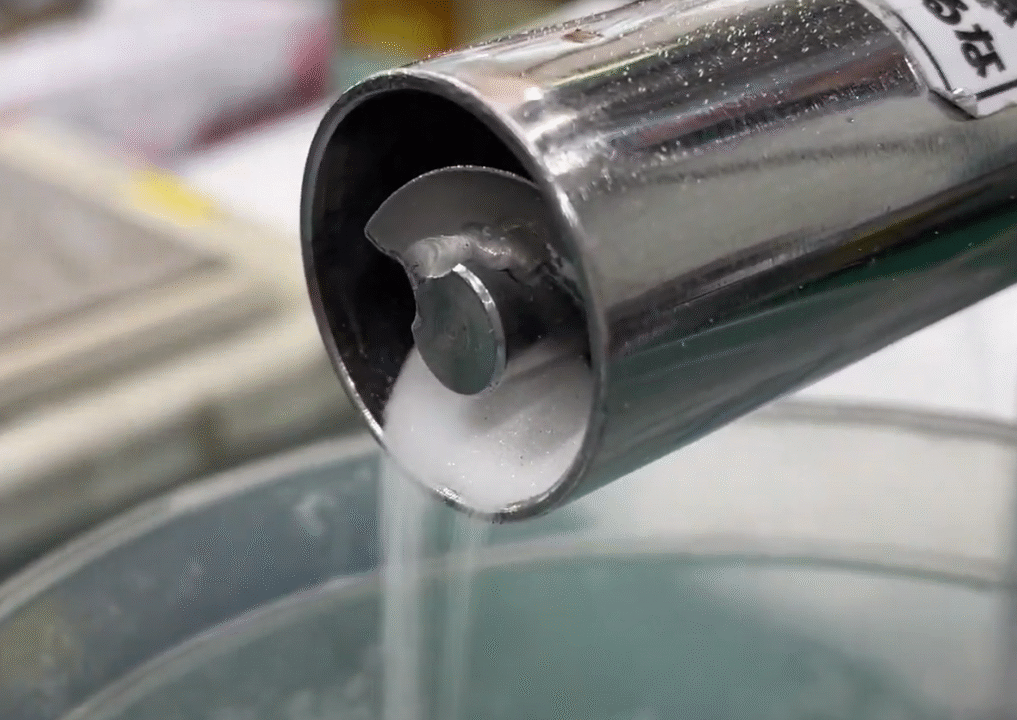

The feeding rate of a screw feeder is determined by the rotational speed of the screw and the volume of material discharged per revolution.
In theory, keeping the motor speed constant should provide a uniform feed rate.
In practice, however, several factors can cause instability:
- Variation in bulk density of the powder
- Changes in powder condition due to humidity or compaction
- Material buildup inside the screw or hopper
- Minor fluctuations in motor rotation
To maintain accuracy, both mechanical design and control methods must be optimized.separation if the equipment or operating conditions are not properly controlled.
3️⃣ Design Improvements for Better Feed Rate Accuracy
① Stabilize powder flow inside the hopper
Even the best control system cannot compensate if the powder does not flow evenly into the screw.
Adding an agitator prevents bridging and rat-holing, ensuring a stable bulk density at the screw inlet.
② Optimize screw geometry and pitch
Fine or light powders benefit from a smaller pitch, while free-flowing powders can be handled efficiently with a larger pitch.
Surface treatments such as fluorine coating can also reduce powder buildup and improve feeding consistency.
③ Improve hopper outlet design
A symmetrical outlet and smooth internal finish help the powder spread evenly across the screw surface, preventing flow bias and short-term fluctuations.tle yet cumulative, segregation prevention should be addressed at the equipment design stage, not only during operation.
4️⃣ Control Methods to Enhance Accuracy
① Variable-speed motor control
Using a variable-speed motor allows the screw’s rotation speed to be adjusted smoothly and precisely.
This fine control helps bring the actual feed rate closer to the target value, even when powder conditions fluctuate.
② Feedback control with weight sensors
For critical applications, integrating the feeder with a load cell enables automatic correction.
When the feeding rate deviates from the target, the system can slightly adjust the motor speed to maintain consistent output.
③ Regular calibration and maintenance
Over time, powder buildup or screw wear can cause deviations in feed rate.
Regular calibration ensures that the feeder’s actual discharge matches the control settings, preserving long-term accuracy.
5️⃣ Practical Example
A lithium battery material manufacturer experienced inconsistent powder dosing due to poor flowability of fine active materials.
By upgrading to a hopper with agitator and applying variable-speed motor control, the company achieved a highly stable feed rate within a narrow tolerance range, improving overall yield and process reproducibility.
6️⃣ Seiwa Giken’s Solutions
At Seiwa Giken, we combine precise mechanical design with reliable control systems to deliver stable, accurate powder feeding.
- Mini Screw Feeder – A compact model ideal for laboratory and test environments. Designed for precise and steady feeding of fine powders or small quantities.

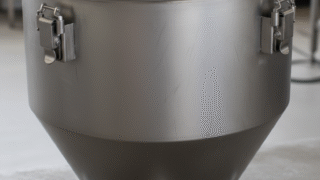

- Standard Screw Feeder – A 20L hopper type equipped with an agitator and variable-speed motor, providing stable, accurate, and repeatable feeding performance in production lines.
Both models can be customized for screw geometry, pitch, and motor settings to suit the specific properties of your materials.
