1️⃣ Why Hopper Design Determines Powder Feeding Stability
In powder handling systems, a hopper is not just a “storage vessel” — it is a crucial device that controls powder flow behavior.
If the design is not appropriate, problems such as bridging, rat-holing, or uneven discharge often occur.
In other words, the hopper is not simply a container, but rather a flow-control mechanism that directly affects feeding performance and production efficiency.
2️⃣ Common Causes of Powder Flow Problems
Powder flow issues inside hoppers typically arise from a combination of powder characteristics and design factors:
- Bridging: Powder forms an arch above the outlet, stopping discharge.
- Rat-holing: Only the central portion flows out, leaving powder around the sides.
- Biased flow: Powder moves along one wall, leading to inconsistent feeding.
- Adhesion: Moisture or static electricity causes powder to stick to the wall surface.
These issues are strongly influenced by powder properties such as particle size, bulk density, moisture content, and cohesiveness, as well as by the hopper angle and surface finish.l methods must be optimized.separation if the equipment or operating conditions are not properly controlled.
3️⃣ Key Design Principles for Stable Powder Flow
① Select the Proper Hopper Angle
The hopper wall angle should exceed the angle of repose of the powder, allowing it to slide freely under gravity.

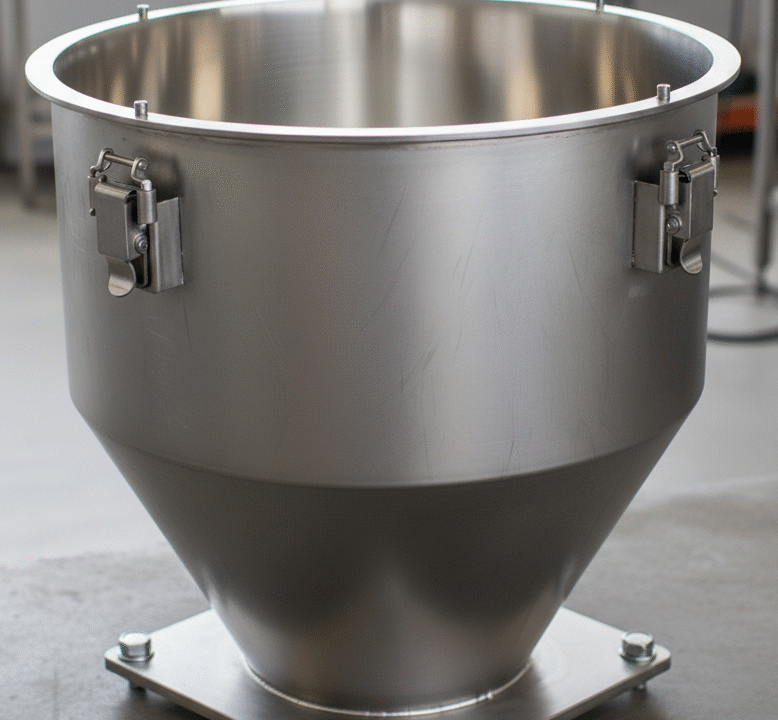

In most stainless-steel hoppers with a smooth finish, an angle of 60–70° is generally recommended.
② Reduce Wall Friction
To minimize powder adhesion and sticking, the wall surface should be as smooth as possible.
At Seiwa Giken, all powder-contact parts are mirror-polished during manufacturing to reduce friction and prevent powder buildup.
This surface finish not only improves powder flowability but also makes cleaning and maintenance easier — a key benefit for research and production environments handling fine powders.
③ Use Agitators or Air Vibrators When Needed
For cohesive or slightly moist powders, mechanical agitation helps maintain a stable flow.
Installing agitators or air vibrators at the lower part of the hopper effectively prevents bridging and material stagnation.
④ Optimize the Hopper Outlet Shape
A center discharge design under a conical hopper helps prevent rat-holing.
Connecting the outlet directly to a screw feeder further stabilizes the discharge rate and maintains continuous feeding performance.
4️⃣ Case Study – Solving Bridging with Hopper Redesign
A pigment manufacturer was facing frequent bridging problems at the hopper outlet.
By adding an agitator and changing the wall finish to a fluoropolymer-coated surface, the powder buildup was eliminated, and continuous feeding stability greatly improved.
In addition, integrating the hopper directly with the screw feeder reduced feeding variation, which in turn eliminated color inconsistency in the final product.
5️⃣ Integration Between Hopper and Feeder Is Essential
Hopper design should not be treated as an isolated component.
For best performance, it must be integrated with the downstream feeder and conveying system.
By designing the hopper and screw feeder as one unit, Seiwa Giken minimizes powder retention, compaction, and discharge irregularities, ensuring smooth and stable operation.
6️⃣ Seiwa Giken’s Hopper & Feeder Solutions
At Seiwa Giken, we offer a lineup of powder feeders designed to meet diverse material and process needs:
- Mini Screw Feeder – A compact hopper-integrated model designed for research and laboratory use.
Prevents bridging even with small batches and allows precise, consistent powder discharge. - Standard Screw Feeder (20L Hopper Type) –
Equipped with an agitated hopper and designed to prevent both bridging and rat-holing.
Suitable for continuous production lines requiring steady powder flow and consistent feed rates.
Both models can be customized in terms of material, hopper angle, and agitation mechanism, according to powder properties and application requirements.
