Introduction
When selecting a powder feeding system, many overseas users compare screw feeders with vibratory feeders. Both methods are widely used in powder handling, but their performance differs significantly depending on powder characteristics, required accuracy, and installation environment.
This article explains the advantages and limitations of each system, helping engineers choose the most suitable feeder for their production or research applications.

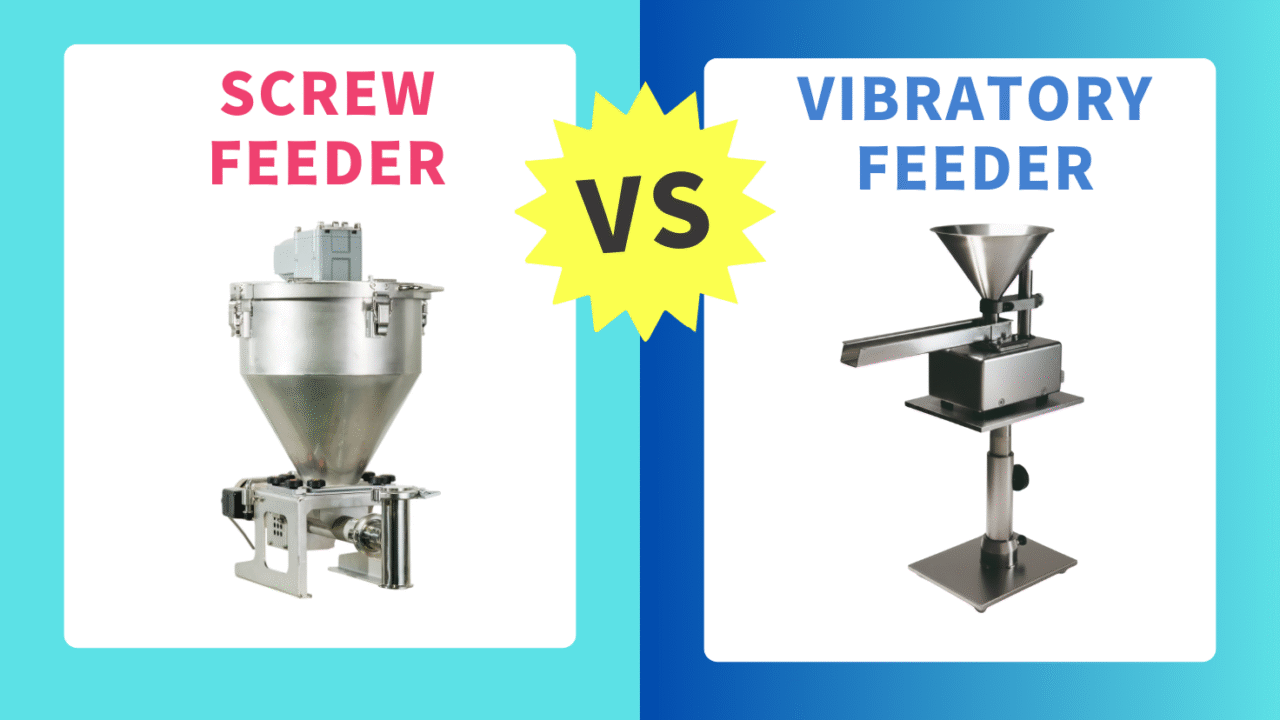

1. Basic Differences Between Screw Feeders and Vibratory Feeders
Screw feeders convey material using a rotating screw, providing continuous and controlled discharge.
Vibratory feeders, on the other hand, move powder forward through vibration, relying on fluidization and particle movement rather than mechanical transport.
Understanding these fundamental differences helps determine which method matches the required feeding accuracy and powder behavior.
2. Feeding Accuracy Comparison
Screw feeders generally offer higher feeding precision because the screw’s rotation directly controls the discharge rate. This makes them suitable for applications requiring stable mass flow or fine dosing control.
Vibratory feeders are effective for free-flowing powders but may show fluctuations when handling lightweight or irregularly shaped materials. Their accuracy is typically lower and more sensitive to environmental vibration or humidity.
3. Powder Characteristics and Handling Suitability
- Screw feeders:

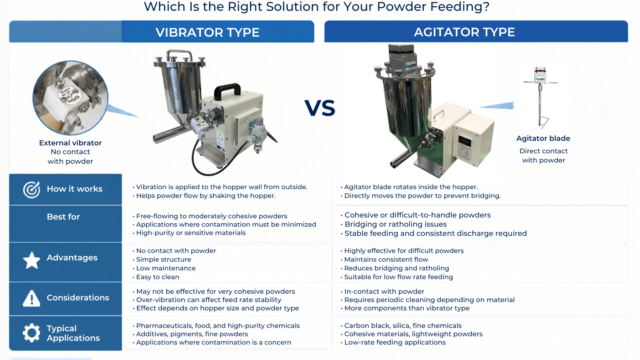

Ideal for cohesive powders, fine powders, or materials that tend to bridge. Equipped with options such as agitators, knockers, or vibrators, they can maintain consistent flow even with challenging powders. - Vibratory feeders:
Suited for uniform, free-flowing materials that respond well to vibration. Difficult-to-flow powders may experience inconsistent discharge or rat-holing.
4. Maintenance and Durability
Screw feeders require periodic inspection of the screw, bearings, and seals, but offer predictable long-term performance.
Vibratory feeders have fewer rotating parts but may require tuning or replacement of vibration components depending on operating frequency and load. They can also be affected by structural resonance or surrounding equipment.
5. Which One Should You Choose?
Choose a screw feeder when:
- You need stable and repeatable feeding accuracy
- The powder is cohesive or prone to bridging
- The process requires controlled dosing or continuous low-rate feed
Choose a vibratory feeder when:
- The powder is free-flowing and not sensitive to vibration
- You want a simpler mechanism with lower initial cost
- Fine accuracy is less critical

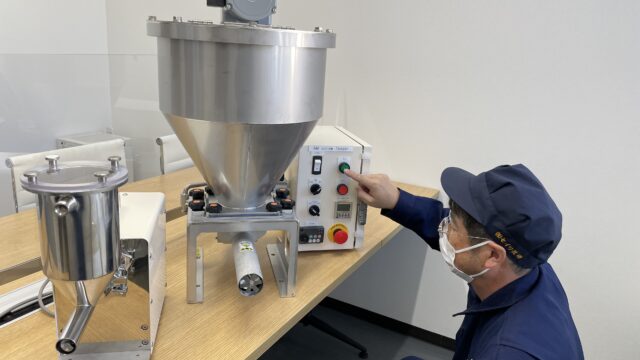

SEIWA GIKEN offers both compact Mini Screw Feeders and Standard Screw Feeders (20L hopper type), designed for stable feeding even with difficult powders. These feeders help reduce pulsation and improve process reliability for a wide range of materials.
Conclusion
Both feeding systems have clear strengths, and the optimal choice depends on powder characteristics, required accuracy, and operating conditions. By understanding how each feeder works, engineers can select the most effective solution for their powder handling line.
👉 Learn more about Seiwa Giken’s Screw Feeders↓↓
