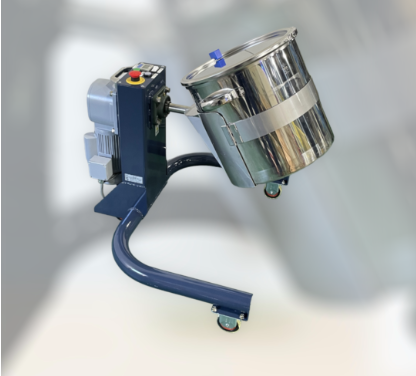

Mini powder mixer

Convenient mixing whenever and wherever needed.
Compact, and mini powder mixer equipped with casters.

ModelTMC-36 (20)
Applicable container36L (20L)
Loading capacityUp to 20 kg or less
Recommended filling volume50–60% of the tank capacity
Rotation speed37.5 rpm (50 Hz) / 45 rpm (60 Hz) ※Fixed speed
Mixing timeUp to approximately 15 minutes (timer setting)
Material bodySS(Painted), and SUS304
External dimensions(W)819 × (D)726 × (H)660 mm
Input voltageSingle phase AC100V
Total weight53kg

The rotary powder mixer is designed to efficiently achieve uniform mixing of powders. This type of mixer rotates its container, allowing the powders to blend naturally under gravity, resulting in a stable mixing effect. It is suitable for various industries that require uniform mixing, such as chemicals, pharmaceuticals, and food.

Advantages

①Uniform Mixing Performance
The powder is naturally stirred and blended evenly within the rotating container. This design ensures a uniform finish even when high-precision mixing is required. The mixer provides stable mixing even when handling powders with varying particle sizes and densities.

②Reduced Powder Damage
Rotary mixers impose minimal mechanical stress on the powder, making them well-suited for fine powders and fragile materials. This gentle handling is ideal for mixing delicate materials or particles that need to maintain their shape.

③Easy Maintenance and Cleaning
With a simple internal structure, the container resists powder buildup, making maintenance and cleaning straightforward. This design is especially beneficial when frequently switching between different materials, as the mixer’s interior minimizes residual powder, allowing for quick changes and improving production efficiency.

④High Safety and Ease of Operation
Its compact design and ease of operation make it efficient for confined work environments or limited spaces. Additionally, the container’s high sealing capability prevents dust dispersion, helping maintain a clean work environment. This mixer combines high safety and user-friendliness.

The rotary powder mixer achieves uniform powder mixing while accommodating delicate materials. It offers multiple advantages, such as improving production line efficiency, ease of maintenance, and enhancing the work environment, making it an effective solution for sites requiring precise powder handling.

The movement of our mixing machine

Examples of Supported Materials

Chemicals (General)
Silica, Talc, Alumina, Ceramics, Slaked Lime, Activated Carbon (Granules, Powder), Carbon Granules, Graphite, Glass Powder, Pigments, Zinc, Manganese Dioxide, Potassium Carbonate, Calcium Carbonate, Light Anhydrous Silica, Aluminum Oxide, Magnesium Oxide, Ammonium Phosphate, Titanium Oxide, Silica Sand, Soil, Feed, Water Purification Agents, Coagulants, Preservatives, Ion Exchange Resin, Cement, Kenaf, Glycerin, Boron Nitride, Incineration Ash, Pigments, Soap, Bath Additives

Biomass & Carbon Neutral
Wood Pellets, Wood Chips (Sawdust), Rice Husks

Resins & Fibers
Pellets, Masterbatch, Resin Powder, Crushed Resin Material, Resin Flakes

Metals
Iron Powder, Various Metal Powders

Food
Flour, Soy Flour, Salt, Sugar, Soybean Powder, Coffee Powder, Tea Powder, Protein Powder, Powdered Dressing, Rice, Rice Flour, Citric Acid, Baking Soda
