Powder filler

Powder filler

Measuring methodDrop and scrape measuring by its own weight
measuring rangeMaximum 1,050cc or less
※Depending on size of cup
Hopper20L(standard type)
OptionBridge breaker (Agitator)
Air vibrator
SpecificationPower supply AC100V single phase (50 / 60Hz)
Air compression 0.5Mpa, Φ6 air tube
External dimensions(W)480×(D)580×(H)1080
Weight60Kg

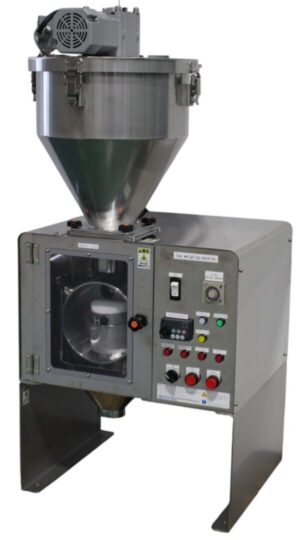

The cup filler is a simple and reliable powder filler designed for small-capacity bagging operations.

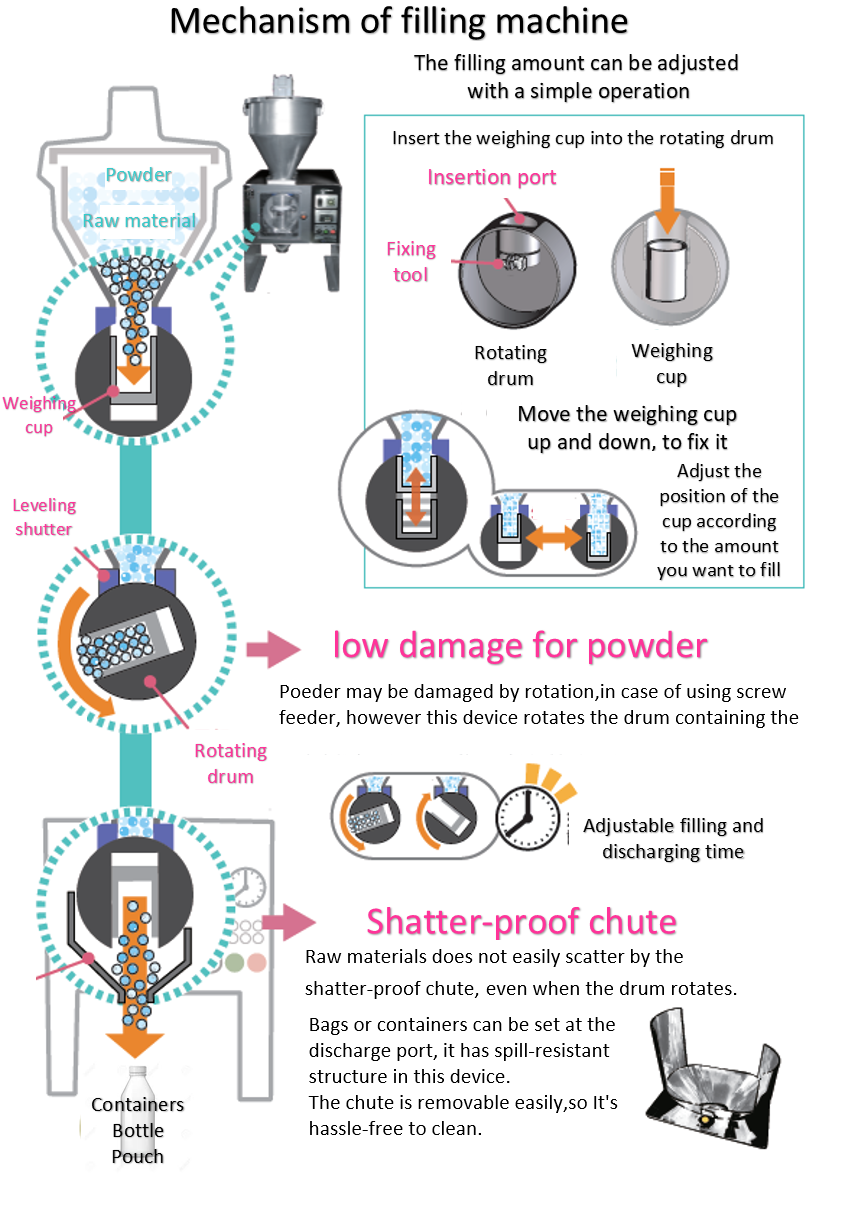

This filling device measures powders and granular raw materials falling by their own weight from the hopper into a measuring cup. The cup then flips while scraping off excess material and discharges the measured quantity directly below. With this method, the filling process is accurate and does not damage delicate raw materials, making it highly suitable for food, chemical, or pharmaceutical powders.

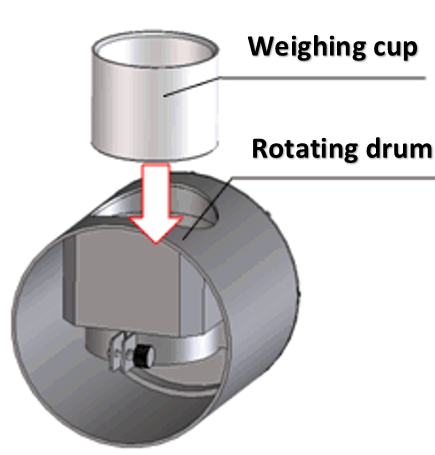

The filling capacity of the cup filler can be adjusted easily by shifting the dedicated measuring cup inside the rotating drum up or down. For smaller dosing requirements, it is also possible to measure and discharge very small amounts by turning the cup upside down. This versatility makes the machine an ideal powder filler for applications where both precision and filling speed are required.

Applicable materials
<Coffee beans,Coffee powder,sugar,salt,sesami,spice,granules,pellets,detergent and etc…>
