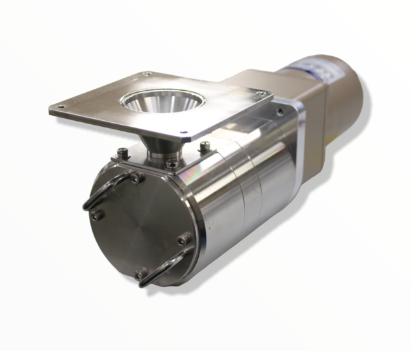

Mini rotary valve




							                                Powder filling machine






















Compact and mini rotary valve for small amount



























Aperture (in/out)(In)25x25mm /(Out)25x38mm

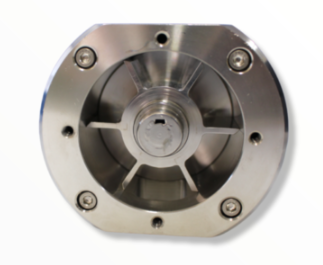

RotorPocket/φ70


Number of blades6


Theoretical 1-turn rotor volume63 cm3


Theoretical feed amount0.049 m3/h


SpecificationMotor: 25W Gear: 1/120 (changeable)
(1560÷120=13rpm)
Shaft bushing: Duracon
Gland packing: VALFLON type #7232
Bearing purge compatible (M6 connection)
Air leakage countermeasure not supported


Weight10Kg


DimensionW108×D358×H139mm




















Compact rotary valve ideal for testing and research applications






Rotary valve for space-saving installation with small feed amount.

Optional “spacing” is convenient for connection to upstream and downstream facilities.
