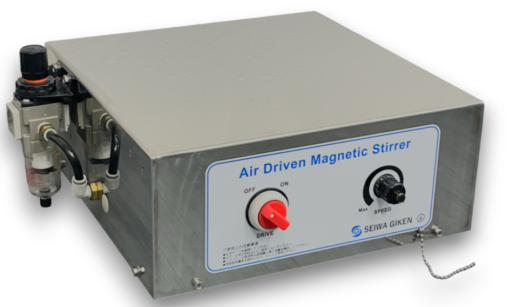

Mix Flammable Solvents Without Electricity
The Air Driven Magnetic Stirrer is designed for laboratories and pilot-scale applications where electrical equipment is undesirable.
Powered only by compressed air, it provides simple and reliable mixing without an electric motor.
| Model | EAS-20 |
|---|---|
| Applicable container | Capacity: MAX 20L (container made of non-magnetic material with flat bottom) |
| Rotors | General rotors available on the market can be used |
| Frequency | High speed H: 300 to 1100rpm, medium speed M: 200 to 730rpm, low speed L: 150 to 500rpm |
| power source | Compressed air 0.4～0.6MPa Consumption 120 to 230 L/min (ANR) |
| Material | Body exterior SUS304 |
| External dimensions | (Ｗ)310×(D)310×(H)142mm |
| Total ｗeight | 5kg |
Typical Applications
Ethanol mixing/IPA mixing/Fragrance development/Chemical laboratory testing/Battery material R&D/Pilot plant testing/Solvent-based formulations
Why Air Driven?
No electrical motor/Compressed air operation only/Suitable where electrical equipment is undesirable/Compact and easy to operate
FAQ
Does it require electricity? No. The stirrer operates using compressed air only.
Can it be used with ethanol or IPA? Yes. It is suitable for many solvent-based laboratory applications.
What industries use this equipment? Chemical, fragrance, energy, battery, and research laboratories.
what vessel size is suitable? Typically laboratory and pilot-scale applications up to approximately 20 liters.
